HTBL bottom loading graphite furnaces offer temperatures of 2200 °C or 3000 °C upon request. Graphite models of the HTBL are offered in volumes of 50, 80 and 200 litres.

One clear advantage is the easy loading and unloading of the HTBL type furnaces. Once the hearth has been lowered, the sample is accessible from all sides without limitations. Sample loading is extremely easy and user-friendly, especially with delicate samples. Additionally, sample thermocouples can placed at specified locations within the chamber. A retort may also be used with the HTBL. The movement of the loading area is fully automated and driven by a hydraulic arm. Once the loading area has reached the lowest position, the user can manually rotate the loading platform outward by 90 °.

Nitrogen, Argon, and Hydrogen gases are available for use as either pure or mixed gas. Other gases may be installed upon request. A slight overpressure or controlled partial pressure, to establish a defined gas flow, can be used in the furnace. Operation with air is not possible.

Various dosing and controlling devices control all gases. Depending on the vacuum requirements, vacuum pumps are configured specifically for the application or as requested. The temperature is independently controlled to achieve the best uniformity.

Príklady aplikácií

kalenie, karbonizácie, keramické vstrekovacie tvarovanie, kovové vstrekovanie - metal injection molding (MIM), letovanie, odplyňovanie, odstraňovanie spojiva, pyrolýza, rýchle prototypovanie, silikonizácia, spekanie, spájkovanie, sublimácie, sušenie, syntéza, temperovanie, vytvrdzovanie, žíhanie

Štandardná výbava

Graphite furnaces offer the highest possible temperatures
Hydrogen partial pressure operation upon request
Precisely controlled vacuum pumping speeds appropriate for use with powders
Fully automatic operation
Data recording for quality management

HTBL GR - spodu plnené pece s grafitovou izoláciou Examples

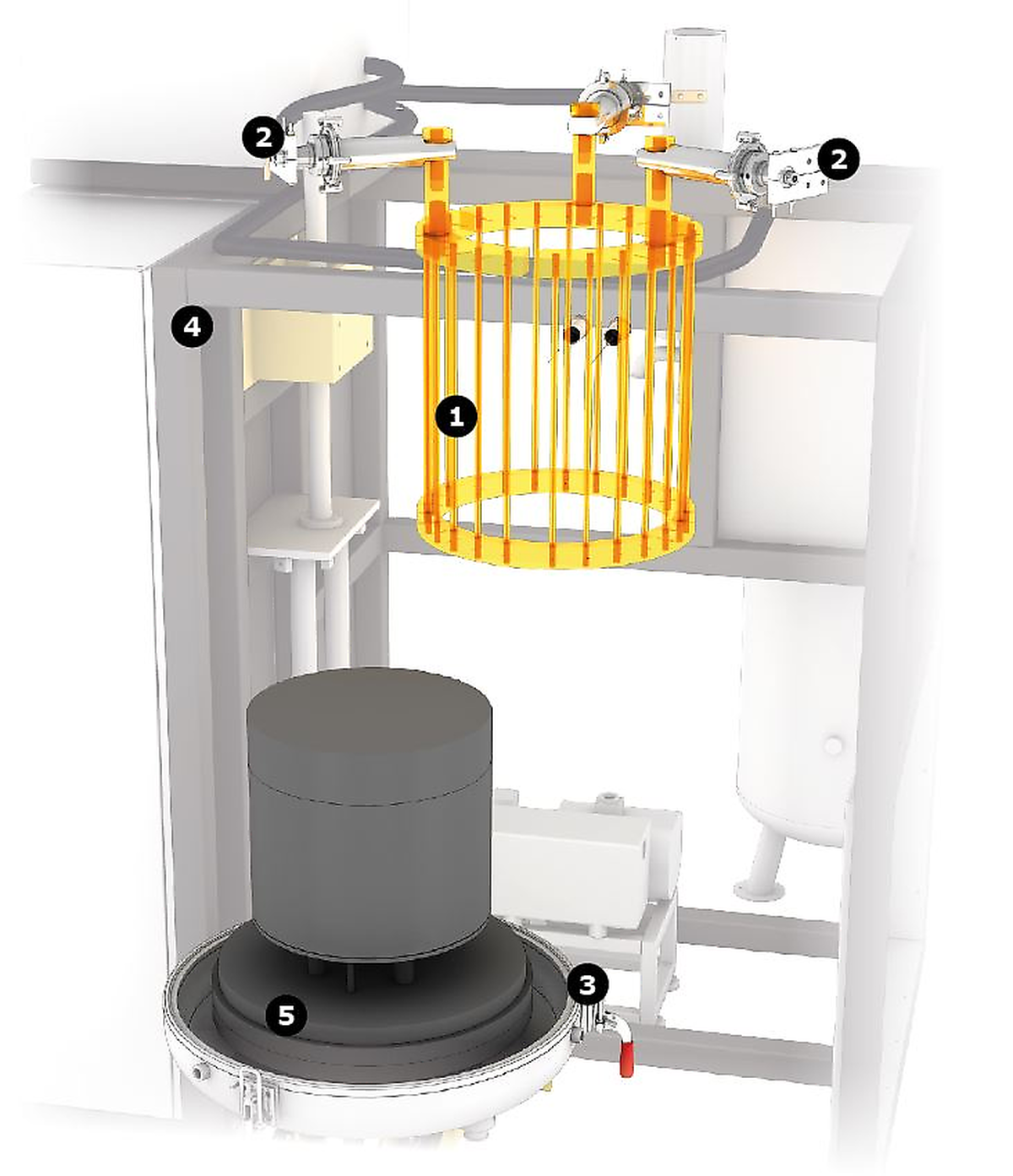

View inside of the HTBL GR

heating elements
water cooled current
bottom locking device
frame
bottom plate

The HTBL GR has one heating zone made from graphite. The mantle heater is software controlled and provided with a controller and thermocouple dedicated for over-temperature protection. The mantle heater consists of several graphite rods arranged along the cylindrical hearth that are secured to the top of the chamber. The insulation of this system consists of graphite felt. The system is surrounded by a water cooled vessel.

To load and unload the furnace, locking clamps are manually operated. Vacuum tubes must also be be attached and detached manually. Aside from these two steps, all remaining movements of the furnace hearth are fully automated. After the bottom, loading area has reached the lowest position, the user can rotate the platform outward by 90°. The automated features of the HTBL are ideal for large scale production.

The graphite based HTBL is equipped with a pyrometer and a sliding thermocouple. A retort can be supplied on request. Graphite is a very versatile construction material for high temperature furnaces. However, if the sample is sensitive to carbon, a metallic furnace must be used.
