TSO Rotary Reactor Tube Furnace Range
Carbolite Gero's versatile new TSO rotary / oscillatory reactor tube furnace range incorporates high-quality heating elements and innovative thermal insulation design to achieve first class performance while maintaining both reduced case temperatures and power consumption.
The TSO tube furnace body is split into two halves and hinged at the rear; pneumatic dampening struts at either end provide a smooth opening action. The ability to open the furnace makes it easier for operators to insert vessels, such as reactors, with end flanges that would make them difficult to insert into a non-split furnace.

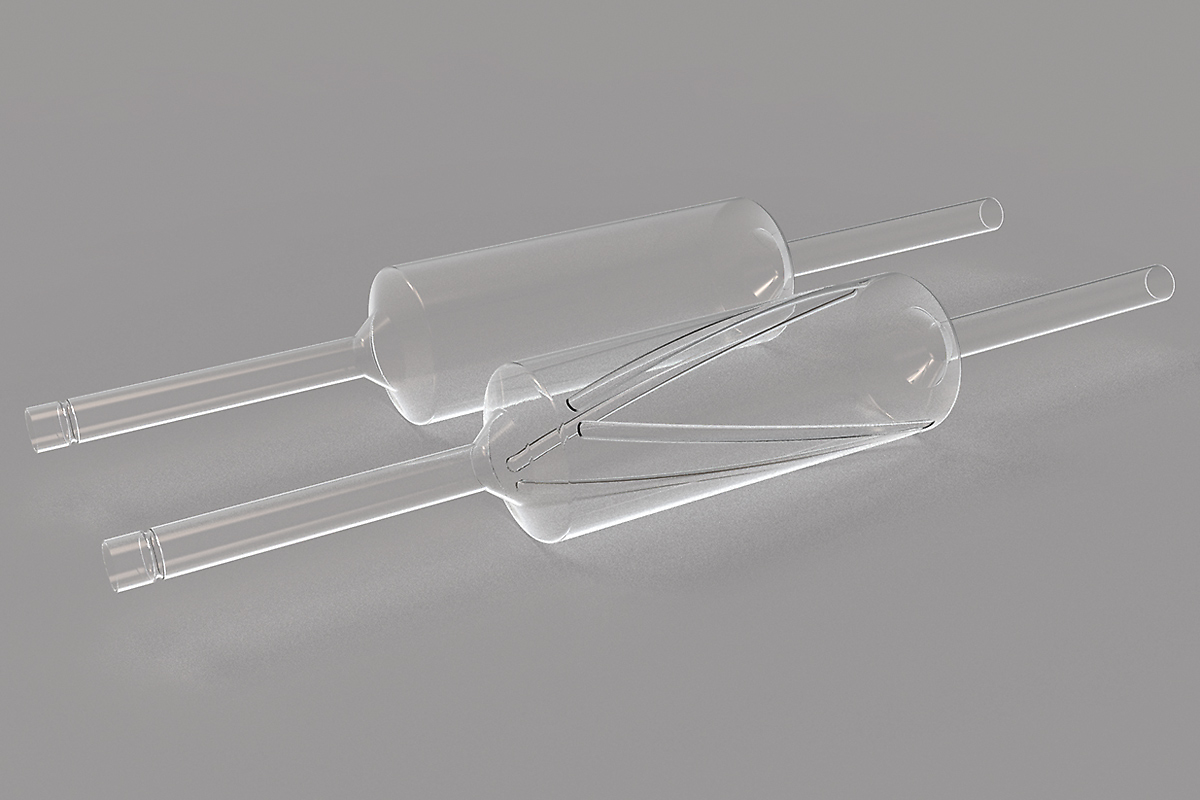

The TSO rotary reactor tube furnace has been specially designed for the processing or testing of powdered or granular materials at high temperatures. A quartz vessel is fitted within the furnace into which materials are placed. A variable speed drive system rotates the vessel within the heated zone by 314° to create an oscillatory motion. Optional accessory packages offer standard or fluted vessels, and the ability to operate under either air or a modified gas atmosphere.
| Maximálna teplota 1100 °C | Reactor vessel Ø 120 mm |
| Vykurovacia dĺžka 400, 600, 800, 1000 mm | Number of heated zones 1 zone or 3 zones |
| Orientation horizontal | |
Produktové video: TSO Rotary Reactor Tube Furnace Range
Carbolite Gero's new tube furnace range is at the pinnacle of furnace design. The culmination of over 80 years of experience in thermal engineering; combining the latest technological developments with solid construction, high-quality components and a sleek, modern aesthetic.
The oscillatory motion of the TSO rotary reactor tube furnace helps increase the surface area of the sample material exposed to the atmosphere within the vessel, helping to speed up reaction times and improve the overall yield.
By viewing this webpage on a compatible mobile device you can click the ‘cube’ icon that allows you to view an augmented reality image of the product.
CC-T1 Touch Screen Controller
TSO rotary tube furnaces are equipped with ethernet communications and a programmable controller with 24 segments as standard:

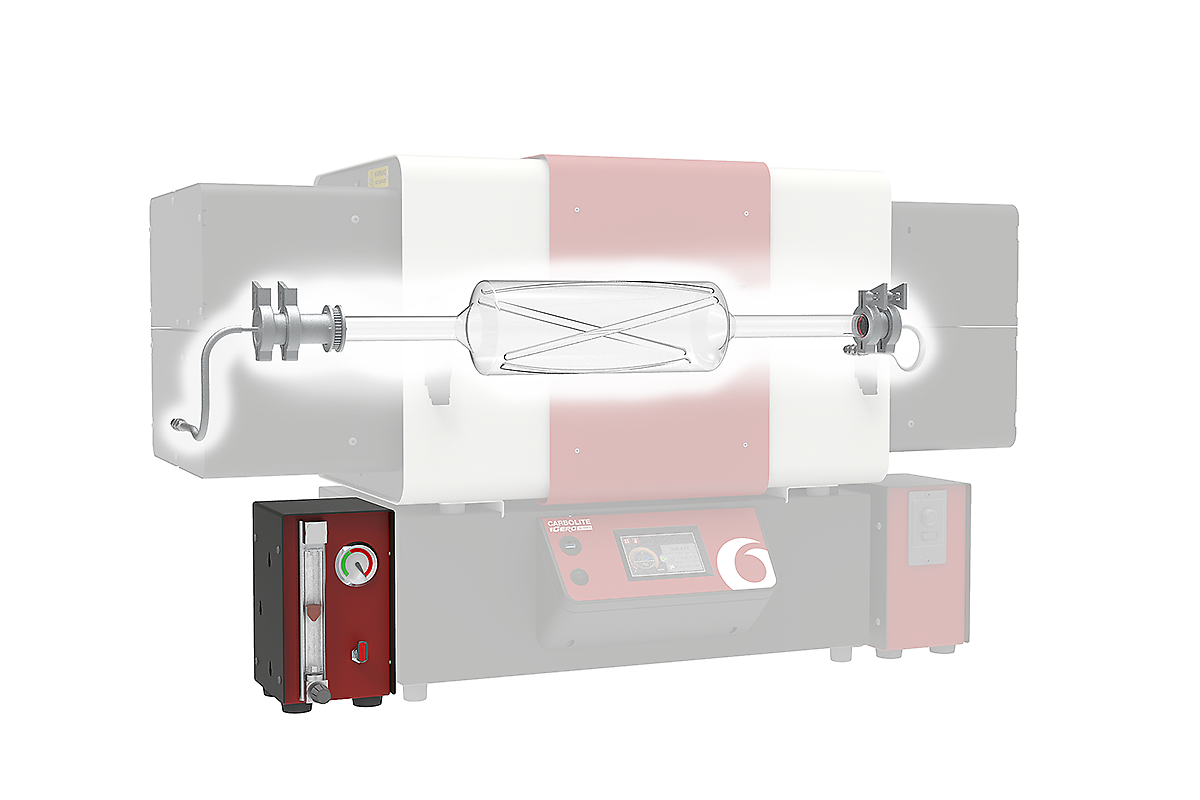

The Carbolite Gero TSO rotary reactor tube furnace range may be equipped with gas connections to accommodate modified atmosphere applications.

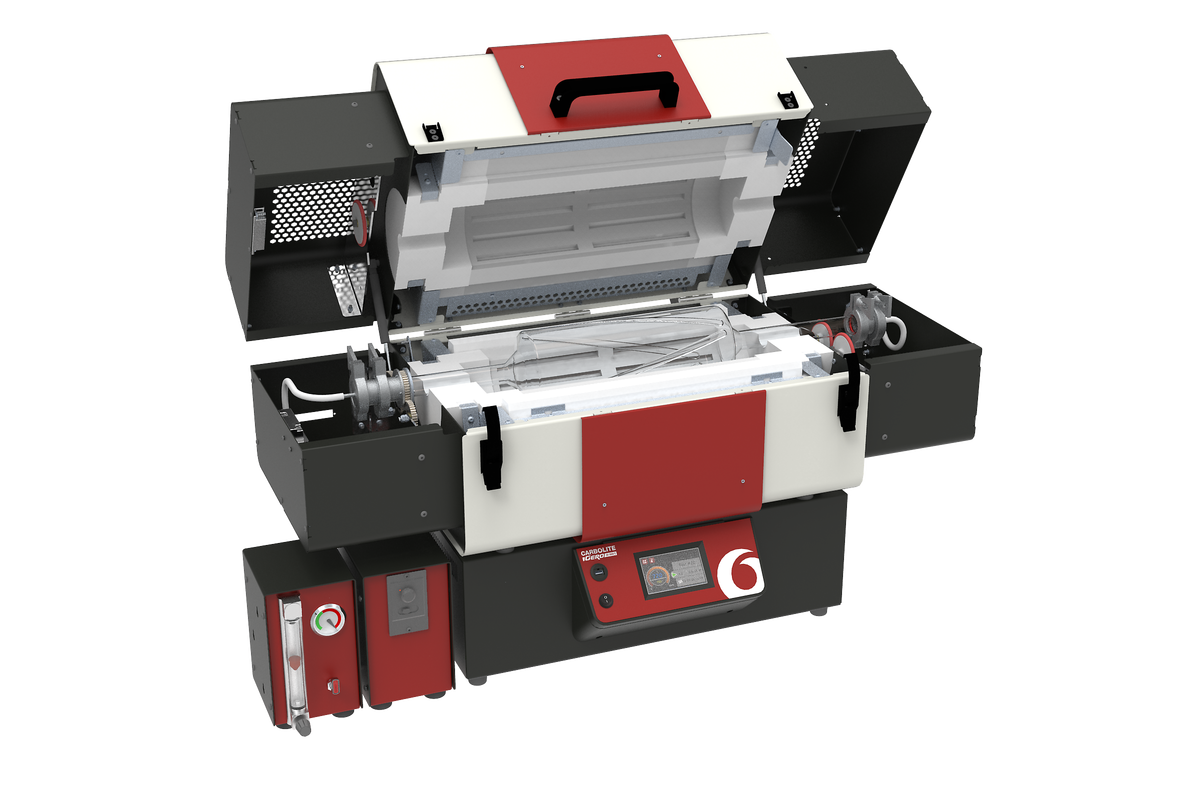

Configuration for heated lengths up to 600 mm

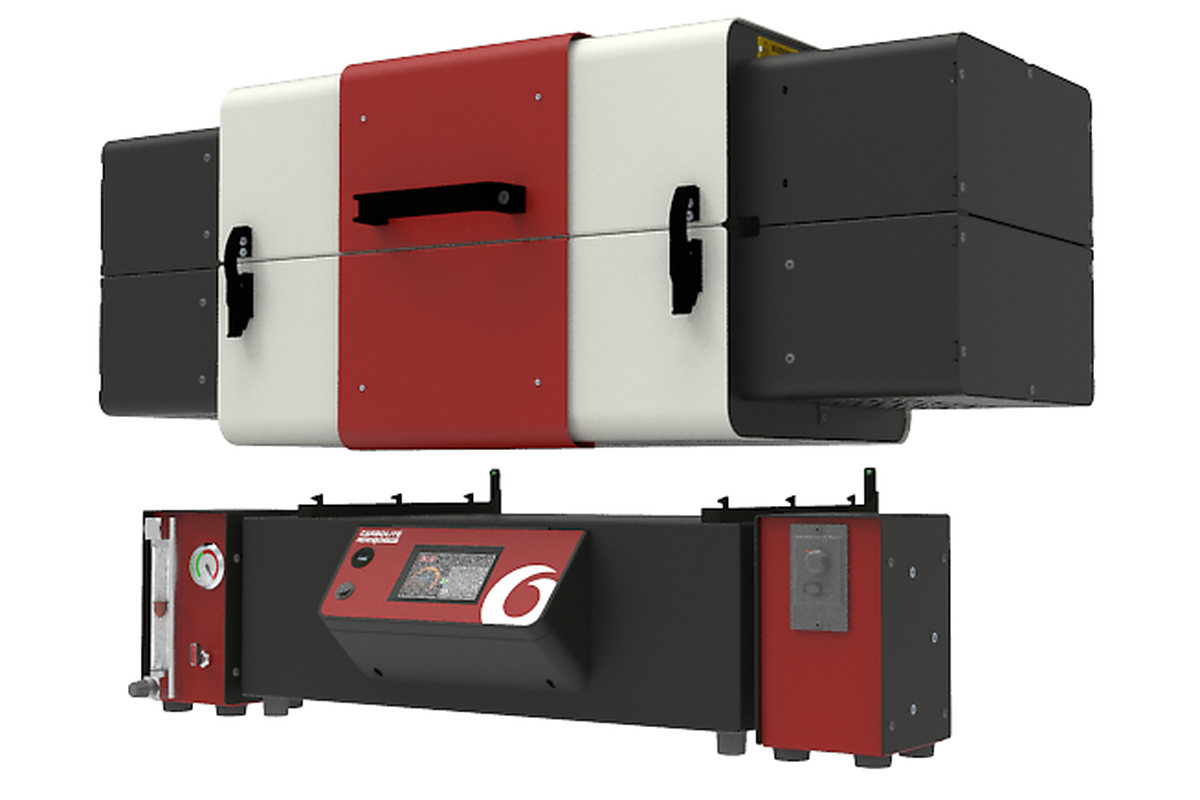

Easy conversion to optional mounting arrangements

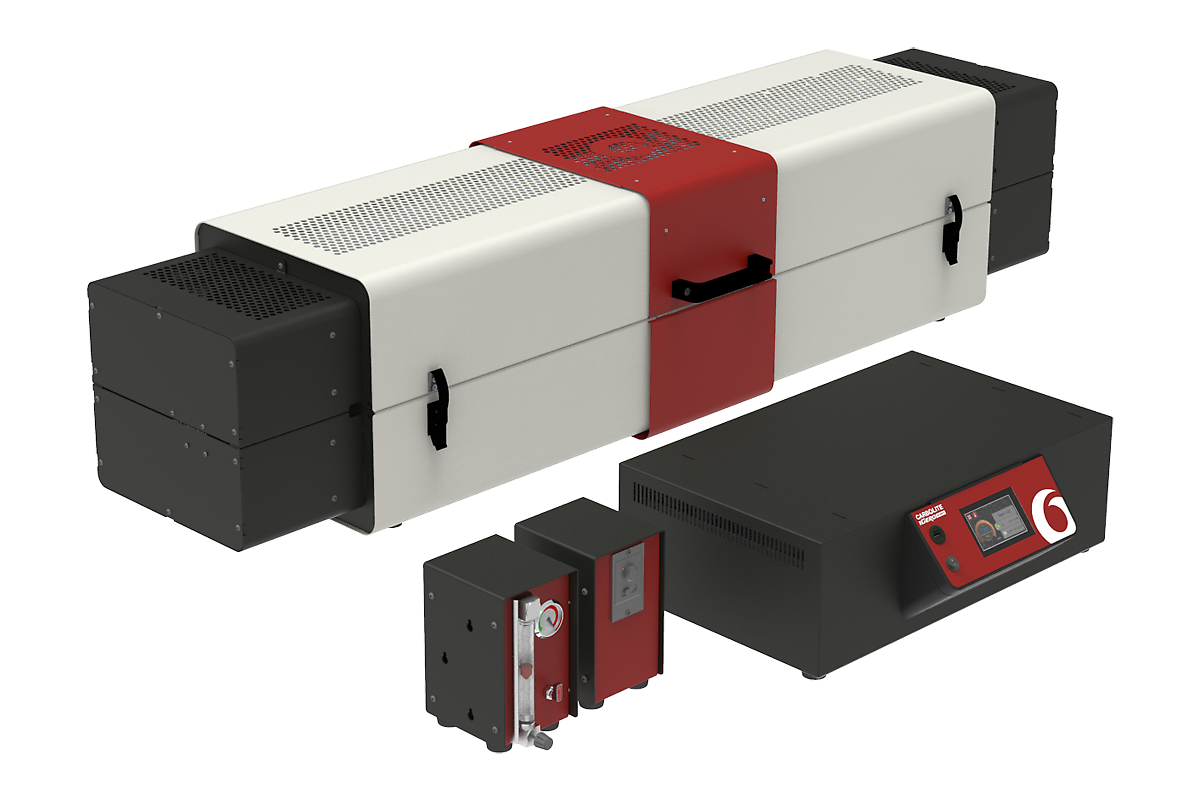

Configuration for heated lengths of 800 mm and above
4 m long extension results in a total of 6 m between furnace body and control box (125 mm Ø models include plug and socket)
| Maximálna teplota (°C) | Počet vykurovacích zón | Rozmery reakčnej komory (mm) | Objem reakčnej komory (ml) | Oscilačná frekvencia za minútu | Rotácia v každom smere | Rozmery: Vonkajšie V x Š x H (mm) so zatvoreným vekom | Rozmery: Vonkajšie V x Š x H (mm) s otvoreným vekom | Maximálny výkon (W) | Váha (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| TSO1 11/400 | 1100 | 1 | ø 120 x 330 | 620 | 1 až 8 | 315° | 665 x 1115 x 575 | 930 x 1115 x 655 | 1860 | 88 |
| TSO1 11/600 | 1100 | 1 | ø 120 x 530 | 990 | 1 až 8 | 315° | 665 x 1315 x 575 | 930 x 1315 x 655 | 2510 | 106 |
| TSO1 11/800 | 1100 | 1 | ø 120 x 730 | 1360 | 1 až 8 | 315° | 445 x 1515 x 575* | 705 x 1515 x 655* | 3160 | 119 |
| TSO1 11/1000 | 1100 | 1 | ø 120 x 930 | 1740 | 1 až 8 | 315° | 445 x 1715 x 575* | 705 x 1715 x 655* | 3810 | 137 |
| TSO3 11/600 | 1100 | 3 | ø 120 x 530 | 990 | 1 až 8 | 315° | 665 x 1315 x 575 | 930 x 1315 x 655 | 2510 | 106 |
| TSO3 11/800 | 1100 | 3 | ø 120 x 730 | 1360 | 1 až 8 | 315° | 445 x 1515 x 575* | 705 x 1515 x 655* | 3160 | 119 |
| TSO3 11/1000 | 1100 | 3 | ø 120 x 930 | 1740 | 1 až 8 | 315° | 445 x 1715 x 575* | 705 x 1715 x 655* | 3810 | 137 |
