HTRV-A - Delená rúrková pec až do 1700 °C

The HTRV-A split tube furnaces have a maximum operating temperature of 1700 °C.

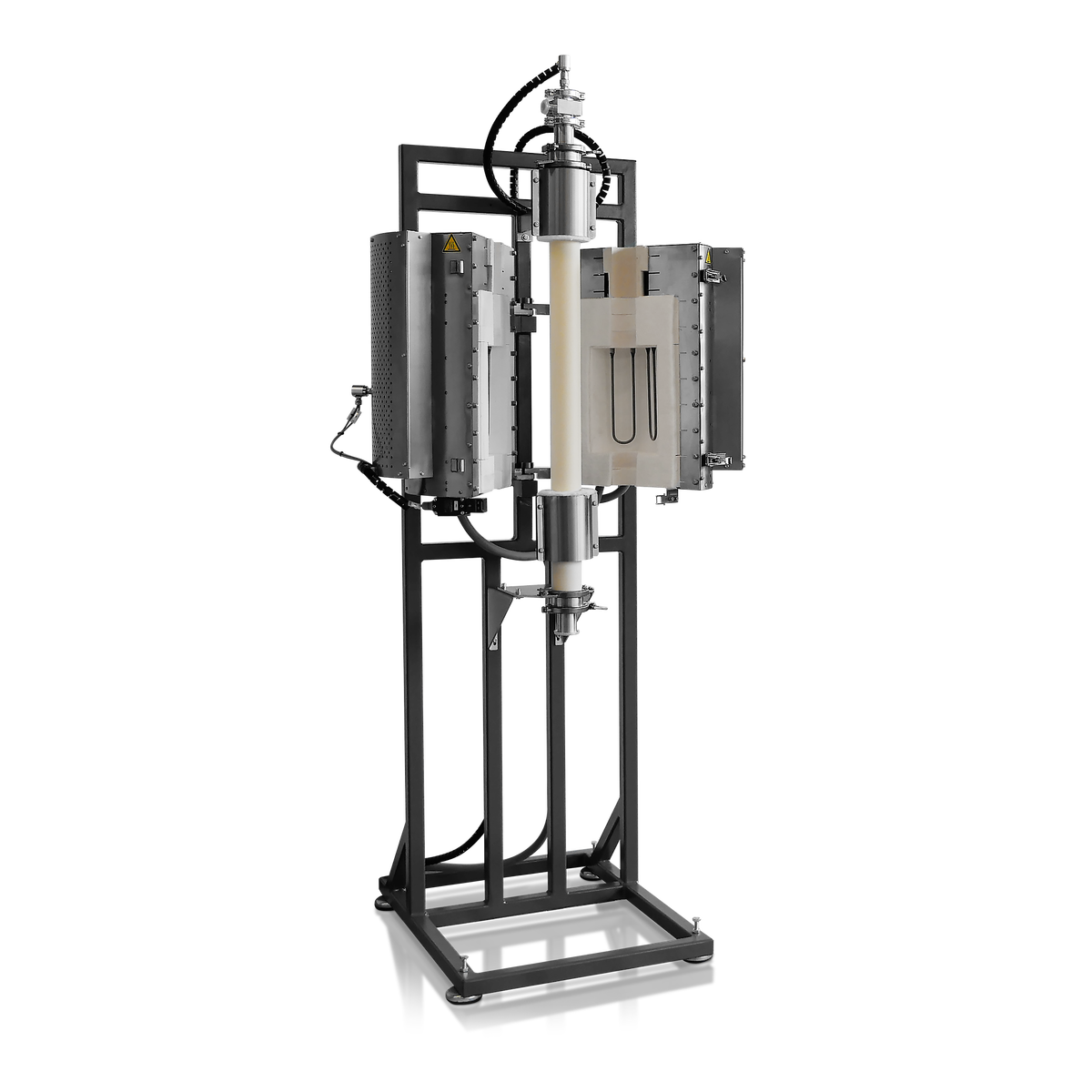

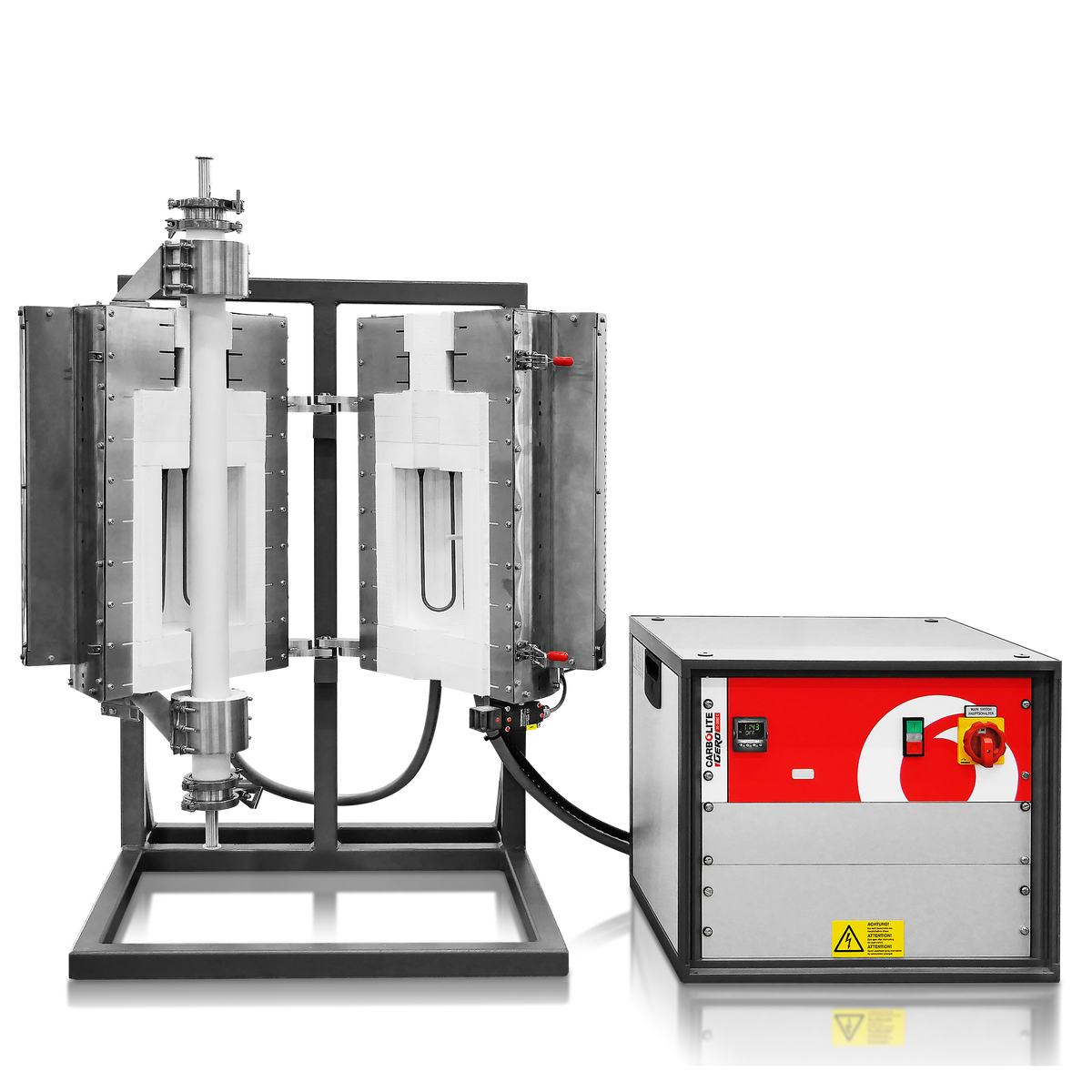

The split heating module allows either easy positioning of the work tube or positioning around reactors which have fixed end flanges. The split design may also allow faster cooling of samples. The control thermocouple is fitted in the centre of the heating zone. Cooling channels are engineered into the housing to aid with convection cooling of the outer case.

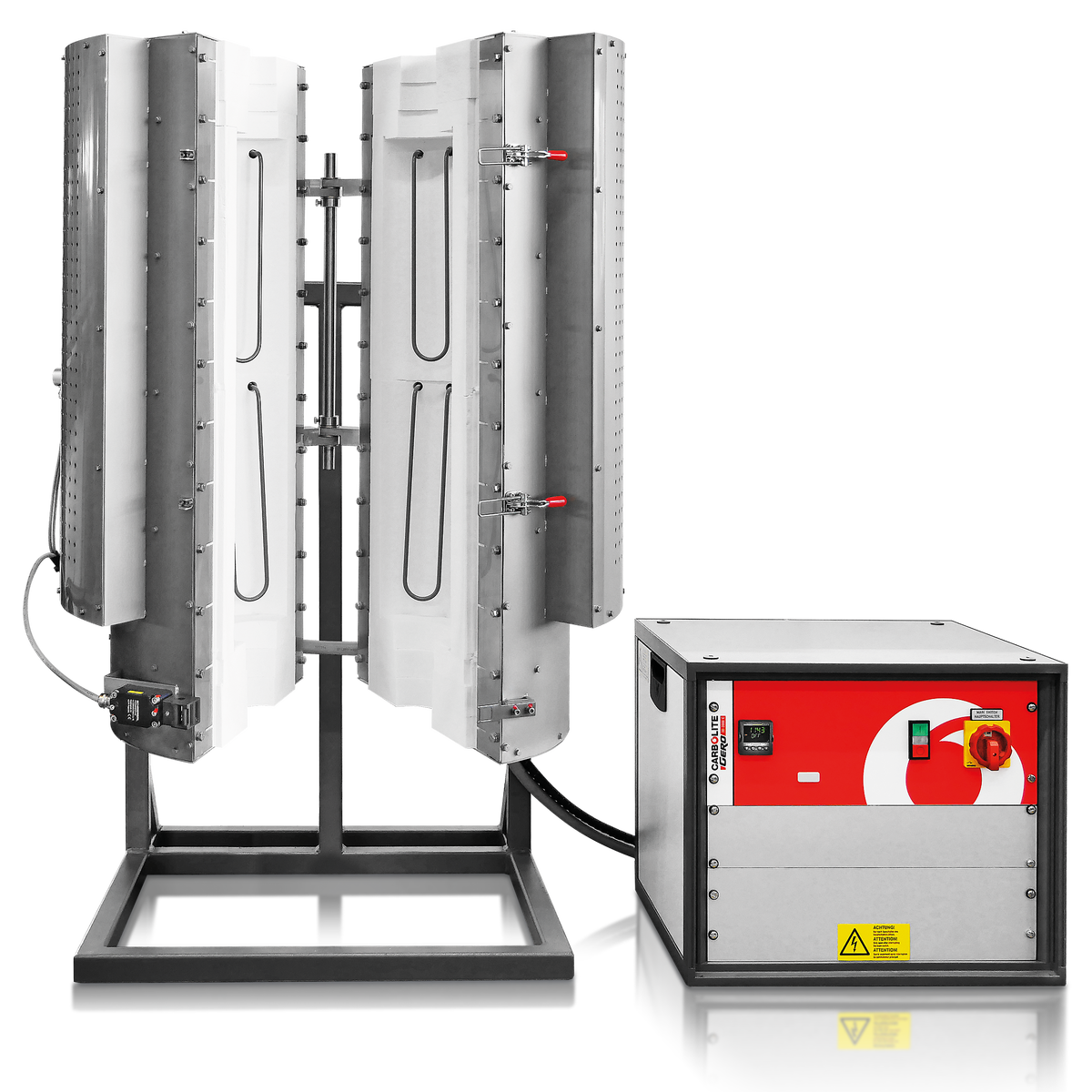

The two furnace chamber halves consist of high grade insulation plates with vertically hanging MoSi₂ heating elements. A safety switch protects the operator by switching off the heating elements once the furnace is opened.

The tube furnace is supplied without a stand, allowing customers to build them into their own equipment. Optional ‘L’ stands are available allowing the furnaces to be self supporting.

Štandardná výbava

• 1600 and 1700 °C maximum operating temperatures
• Programovateľný regulátor EPC3016P1
• Ochrana proti prehriatiu
• Designed for vertical use
• Pre pracovné rúrky s vonkajším priemerom do 100 mm pre použitie s modifikovanou atmosférou
• Heated lengths of 120, 250, 500 or 700 mm
• Vysoko kvalitný termočlánok typu B
• Izolácia z keramických vlákien s nízkou tepelnou hmotnosťou
• Vertically hanging high quality MoSi2 heating elements
• Supplied with separate control box and 3 m cable, plug and socket
• Ethernet communications

Možnosti (uveďte pri objednávke)

• A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
• K dispozícii je rád prídavných pracovných rúr z rôznych materiálov
• Izolačné záslepky a radiačný štít zaisťujú nízke tepelné straty a zlepšujú uniformitu teploty
• Modifikovaná atmosféra a vákuové zostavy sú k dispozícii - Viac informácií
• K dispozícii sú sady pre vákuum s voľbou rotačného lopatkového čerpadla alebo turbomolekulárního čerpadlá
• Longer heated lengths
• "L" stojan pre pohodlné používanie
• Kyslíkový senzor pre sady inertného plynu
• 6 m long cable between furnace body and control box with plug and socket

HTRV-A - Delená rúrková pec až do 1700 °C Technické údaje

View inside the HTRV-A split tube furnace

1. Outer case
2. Ceramic fibre end insulation
3. Ceramic fibre case insulation
4. Heating elements
5. Ceramic fibre inner insulation
