GPCMA - Komorové pece s modifikovanou atmosférou

The GPCMA modified atmosphere chamber furnaces are equipped with a metallic retort to provide a heated volume with a controlled atmosphere. They are floor-standing models with a smooth action hinged door arrangement.

Available with a range of maximum temperature from 1000 °C to 1150 °C dependent on the selected retort material. Retort working volumes range from 37 to 245 litres.

Oxygen levels can be reduced to 30 ppm depending on the application. Perfect for stress relieving additive manufactured components particularly those produced via DMLS. This range of furnaces can be optionally specified for compliance to AMS2750F Nadcap class 1 for aerospace applications.

Produktové video: GPCMA - Komorové pece s modifikovanou atmosférou

Štandardná výbava

A range of maximum temperatures dependant on retort material:
310 Stainless Steel: 1000 °C max
314 Stainless Steel: 1050 °C max
Inconel 601: 1100 °C max
Haynes 230: 1150 °C max
Programmable 3508P1 controller
2-zone cascade control
Ochrana proti prehriatiu
37, 56, 117, 174, 208 or 245 litre retort working volume
Semi-automatic gas system with analogue flowmeters for nitrogen or argon
Free radiating coiled wire elements on two sides, the roof and under the hearth (37 litre: two sides and under hearth)
Tepelná izolácia pre rýchlejšie vykurovanie a vyššiu úsporu energie
Smooth action double pivot door shields the user from excessive heat
Type R control thermocouples
Type K internal retort thermocouple
Silicone rubber water cooled door seal
Door safety interlock

Možnosti (uveďte pri objednávke)

Dostupná je široká rada digitálnych regulátorov, multi segmentových programátorov a ústrední. Tieto pece môžu byť vybavené komunikačným rozhraním RS232, RS485 alebo Ethernetom - viac informácií
Vacuum option (10^-2 mbar) for faster atmosphere exchange at room temperature only. No heat treatment under vacuum possible. A vacuum retort MUST be ordered with this option
Semi-automatic gas system with analogue flowmeters for argon
Semi-automatic gas system with digital flowmeters
Automatic gas system with gas monitoring and control with mass flow controllers
Oxygen monitoring system with 3504 programmer
Forced cooling system
Active afterburner torch option (propane or methane with pressured air; NOT compatible with vacuum option/vacuum retorts)
Chiller unit, 5 litre/min, 1 kW
Loading trolley
AMS2750F Nadcap compatible models are available for aerospace applications
Various loading and unloading options can be supplied

GPCMA - Komorové pece s modifikovanou atmosférou Examples

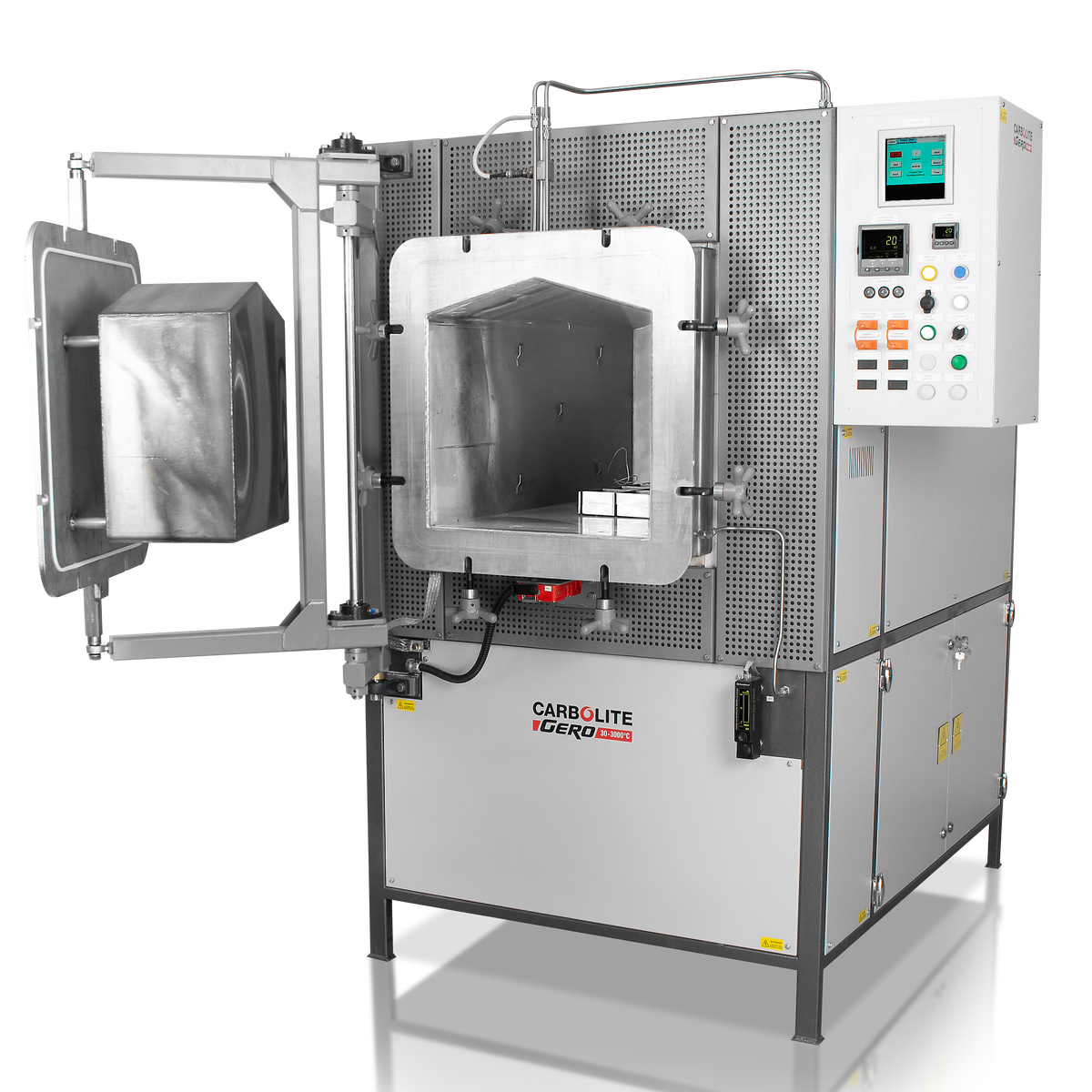

GPCMA /174 fitted with optional compliance to AMS2750G class 1 / type A

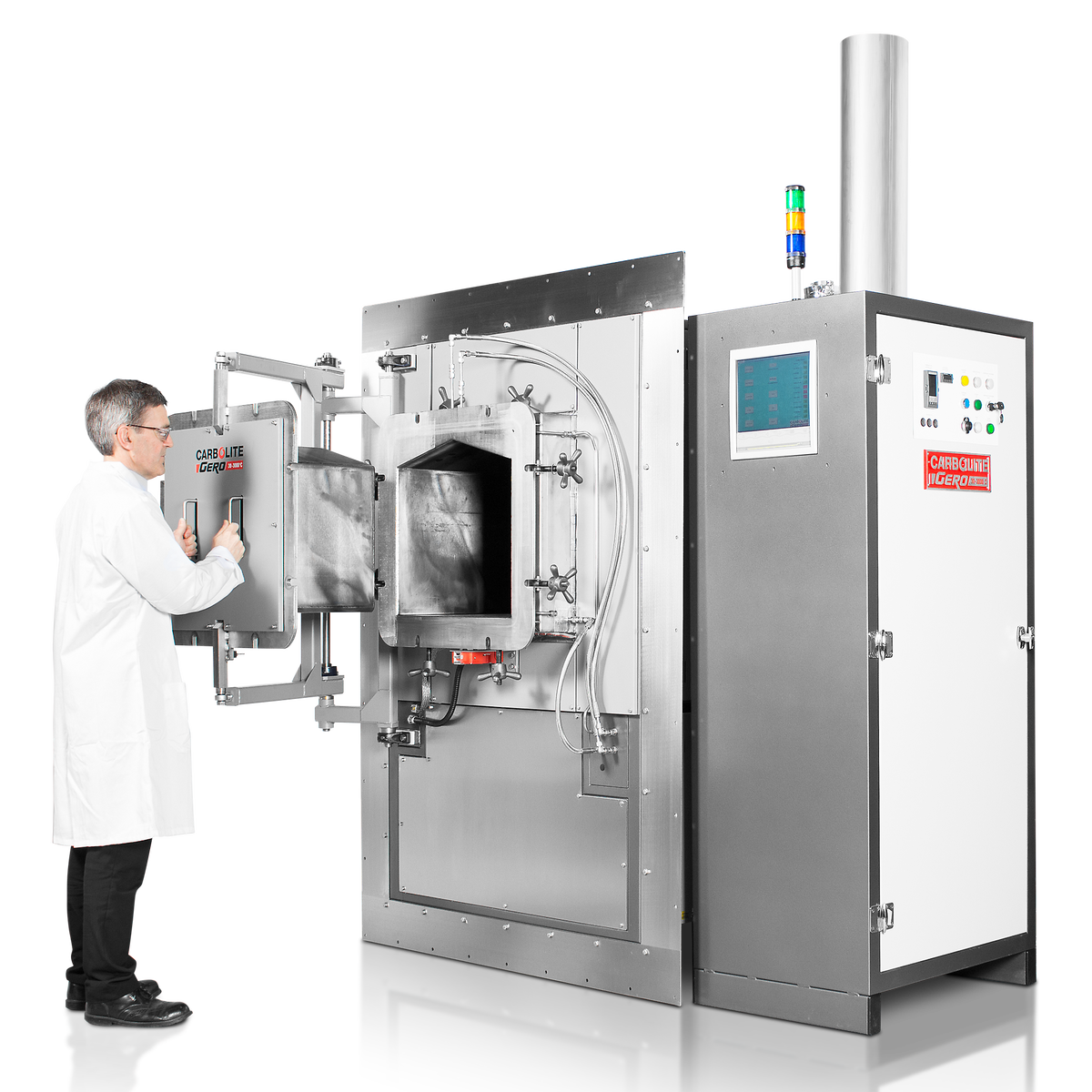

GPCMA /174 with PLC controlled gas system, HMI touch panel and afterburner with heated gas outlet. Designed to fit against a clean room wall opening.
